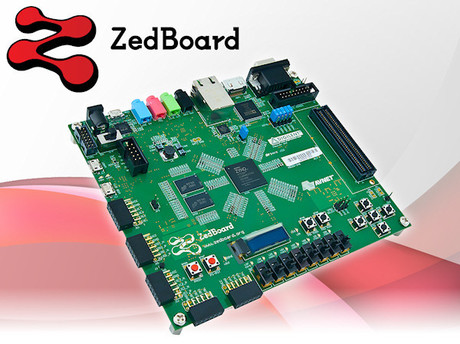

产品照片：
Key Features
-
Zynq Processor
- Dual ARM® Cortex™-A9 MPCore™
- Up to 667 MHz operation
- NEON™ Processing / FPU Engines
-
Memory
- 512 MB DDR3 memory (1066 Mbps)
- 256 Mb Quad SPI Flash
- Full size SD/MMC card cage
- 4 GB SD Card Included
- Connectivity
- 10/100/1000 Ethernet
- USB OTG (Device/Host/OTG)
- USB UART
- Expansion
- FMC (Low Pin Count)
- (5) Pmod™ headers (2x6)
- Video/Display
- HDMI output (1080p60 + audio)
- VGA connector
- 128 x 32 OLED
- User LEDs (9)
- User Inputs
- Slide switches (8)
- Push button switches (7)
|
- Audio
- 24-bit stereo audio CODEC
- Stereo line in/out
- Headphone
- Microphone input
- Analog
- Xilinx XADC header
- Supports 4 analog inputs
- 2 Differential / 4 Single-ended
- Debug/Programming
- On-board USB JTAG programming port
- ARM Debug Access Port (DAP)
- Power
- 12V DC input @ 3.0 A (Max)
- Dimensions
- Length: 6.3 inches
- Width: 5.3 inches
|
Target Applications:
- Video processing
- Motor control
- Software acceleration
- Linux/Android/RTOS development
- Embedded ARM® processing
- General Zynq™-7000 EPP prototyping
ZedBoard is a low-cost development board for the Xilinx Zynq™-7000 Extensible Processing Platform (EPP). This board contains everything necessary to create a Linux, Android, Windows® or other OS/RTOSbased design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.
Take advantage of the Zynq-7000 EPP’s tightly coupled ARM® processing system and 7 series programmable logic to create unique and powerful designs with the ZedBoard. The ZedBoard kit is supported by the www.zedboard.org community website where users can collaborate with other engineers also working on Zynq designs.
Kit Includes:
- Avnet ZedBoard 7020 baseboard
- 12 V AC/DC power supply
- 4 GB SD Card
- Micro-USB cable
- USB Adapter: Male Micro-B to Female Standard-A
- Getting Started Guide
- ISE® WebPACK™ with device-locked ChipScope license
