The DSP Development Kit, Stratix®III Edition is RoHS compliant and delivers a complete digital signal processing (DSP) development environment. The kit facilitates the entire design process from design conception through hardware implementation. The DSP Development Kit, Stratix III Edition includes the Stratix III FPGA development board, a data conversion high-speed mezzanine card (HSMC), MATLAB/Simulink evaluation software, power supplies, and cables. For further DSP based design productivity, theDSP Builderdevelopment tool is available separately.
Development Kit Contents
The DSP Development Kit, Stratix III Edition features:

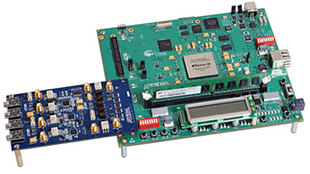

- Stratix III development board (see Figure 1)
- High-performance Stratix III EP3SL150F1152 FPGA
- DDR2 SDRAM and QDR II SRAM
- PSRAM and flash memory
- USB 2.0 MAC/PHY
- Graphics and character LCD displays
- On-board embedded USB-BlasterTMdownload cable
- Data conversion HSMC
- Two 14-bit, 150-million samples per second (MSPS) analog-to-digital converters (ADCs)
- Two 14-bit, 250-MSPS digital-to-analog converters (DACs)
- Audio in/out/mic
- Power regulators and data converters
- LTM4601EV: 12-A DC/DC μModule
- LTC3026EDD: 1.5-A low input voltage, very low dropout (VLDO) linear regulator
- LT1761ES5-SD: 100-mA, low-noise, low dropout (LDO) micropower regulators in SOT-23
- LT1374CFE: 4.5-A, 500-kHz step-down switching regulator
- LT1931AES5: 1.2/2.2-MHz inverting DC/DC converters in ThinSOT
- LTC2402CMS: 1/2-channel 24-bit μPower no latency delta-sigma ADC in MSOP-10
- MATLAB/Simulink 30-day evaluation software
|
