Altera Cyclone III 版嵌入式系统开发套件DK-EMB-3C120N开发板

原装开发板 定货周期快，欢迎咨询 0755-25310164

Development Kit Contents

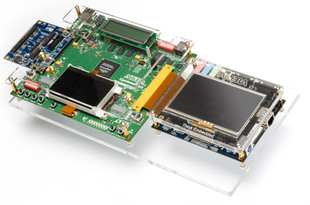

The Altera Embedded Systems Development Kit, Cyclone III Edition is comprised of the Cyclone III FPGA development board, LCD multimedia HSMC board, and HSMC to Santa Cruz/USB/Mictor card. The kit is RoHS compliant and features:

• Cyclone III development board
  • Cyclone III EP3C120F780 FPGA
  • Embedded USB-Blaster™ circuitry (including an Altera MAX^®II CPLD) allowing download of FPGA configuration files via the flash device or the host computer
• Memory
  • 256 megabytes (MB) of dual-channel DDR2 SDRAM with ECC
  • 8 MB of pseudo SRAM
  • 64 MB of flash
• Communication ports
  • 10/100/1000 Ethernet
  • USB 2.0
• Power and analog devices from Linear Technology
  • Switching power supply LTM4601
  • Switching and step-down regulators LT1931, LT3481, and LTC3418
  • Analog-to-digital converter LTC1865
  • LDO regulators LT1963 and LT1761
• Clocking
  • 50-MHz and 125-MHz on-board oscillators
  • SMA inputs/outputs
• Inputs/outputs for the two HSMCs
• Various buttons, switches, and indicators
• Display
  • 128 x 64 graphics LCD
  • 2-line x 16-character LCD
• Connectors
  • Two HSMCs
  • USB type B
• Debug tools
  • Three HSMC debug cards (two loop-back and a debug header)
• Cables and power/analog
  • 14-V to 20-V DC input
  • On-board power measurement circuitry
  • 19.8 W per HSMC interface
  • Power cord with plug adapters (US, UK, EU)

LCD Multimedia HSMC Card

• LCD touch-screen display
  • 800 x 480 pixel size
• Audio CODEC
• SD Flash
• 10/100 Ethernet physical layer/media access control (PHY/MAC)
• Connectors
  • VGA output
  • Composite digital TV in
  • Serial connector (RS-232 DB9 port)
  • PS/2
  • Ethernet connector (RJ-45)

HSMC to Santa Cruz/USB/Mictor Card

• Santa Cruz header
• Mictor connector for software debugging
• Adjustable logic levels between HSMC and SC interface signals
• High-speed USB 2.0 On-The-Go transceiver
• SMA connector for external clock input
• SD card socket

Altera Embedded Systems Development Kit, Cyclone III Edition CD-ROM

• Design examples, demos, and prebuilt processor systems
• Tutorials (hardware and software)
• Board documentation

Cables and Accessories

• 14-V to 20-V DC input
• Power cord with plug adapters (US, UK, EU)
• SD card and USB to SD card reader
• USB cable
• 16-V power supply
• Ethernet (RJ-45) cable (7 ft.)

Altera Complete Design Suite

• Available for download at Altera Download Center
• Quartus II Web Edition (FPGA design software)
• ModelSim^®-Altera Web Edition (FPGA simulation software from ModelSim)
• Nios II Embedded Design Suite, Evaluation Edition (32-bit microprocessor software)
• MicroC/OS-II real-time operating system evaluation
• Nios II C2H acceleration compiler evaluation
• NicheStack TCP/IP Network Stack - Nios II Edition evaluation
• MegaCore IP (library of IP cores)
