产品参数
IC:Xilinx Artix-7 FPGA (XC7A100T-1CSG324C)
Connectors:Four Pmod connectors
One Pmod connector for FPGA’s internal A/D converter
16 individual LEDs in various colors
2 tri-color LEDs
16 slide switches
Six pushbuttons (one for FPGA reset)
8-digit seven-segment display
● Xilinx Artix-7 FPGA (XC7A100T-1CSG324C)
● 101,440 logic cells in 15,850 slices
● 240 DSP48E1 slices, each with pre-adder, 25x18 multiplier,
adder, and a 48-bit accumulator
● 1,188 Kb of distributed RAM and 4,860Kb of block RAM
● 6 clock management tiles
● 8 gigabit transceiver pairs
● 1 10-bit analog to digital converter block
● 128Mb PSRAM
● 128Mb Quad-data rate SPI Flash
● 10/100 Ethernet Phy
● PDM MEMs digital microphone
● Three-axis accelerometer
● Audio amplifier and speaker jack
● Temperature sensor
● USB UART
● USB port for FPGA configuration and user data transfers
● USB port for HID devices (mice and keyboards)
● SD card connector supports file transfers and FPGA config
● 100MHz CMOS oscillator
● VGA connector with 12-bit color

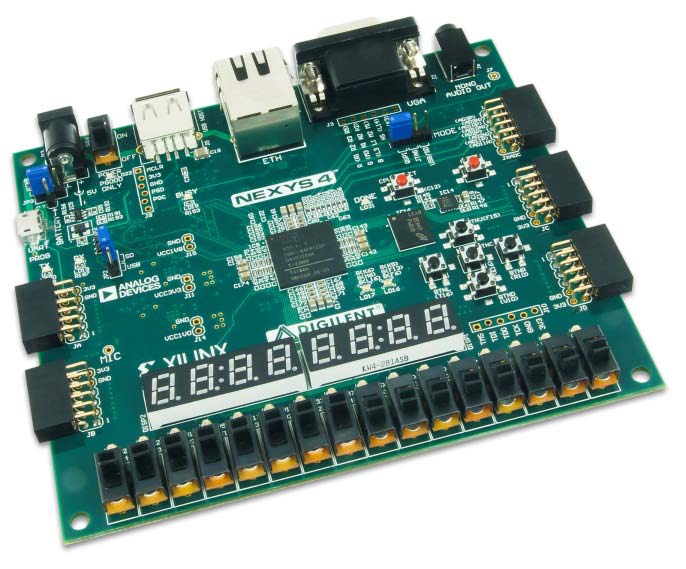

The Nexys 4 board, based on the latest Artix FPGA from Xilinx, brings unprecedented performance to
a student-focused FPGA design kit. With its large, high-capacity FPGA, generous external memories, and
a collection of USB, Ethernet, and other ports, the Nexys 4 can host designs ranging from introductory
combinational circuits to powerful embedded processors. Plus, several built-in peripherals including an
accelerometer, temperature sensor, MEMs digital microphone, speaker amplifier and lots of I/O devices
means the Nexys 4 can be used for a wide range of designs without needing any other components.
Power
Can be powered from USB port, optional external power
supply, or 2-pin battery pack connector
