Platform Cable USB II 全新XILINX原厂USB下载线 HW-USB-II-G (DLC10)--下载线--开发板商城
Platform Cable USB II 全新XILINX原厂USB下载线 HW-USB-II-G (DLC10)
销售状态: 本站销售,热卖中
浏览次数:4794次 赠送积分:0 分
商品规格:
供 应 商: XILINX 原...
商品价格: ¥0元
¥0元
市场价 商城价




Platform Cable USB II

产品美国进口原装,保证质量与售后,请来电询价:0755-25310164

研究所及各高校批量更优惠!学术价活动进行中。

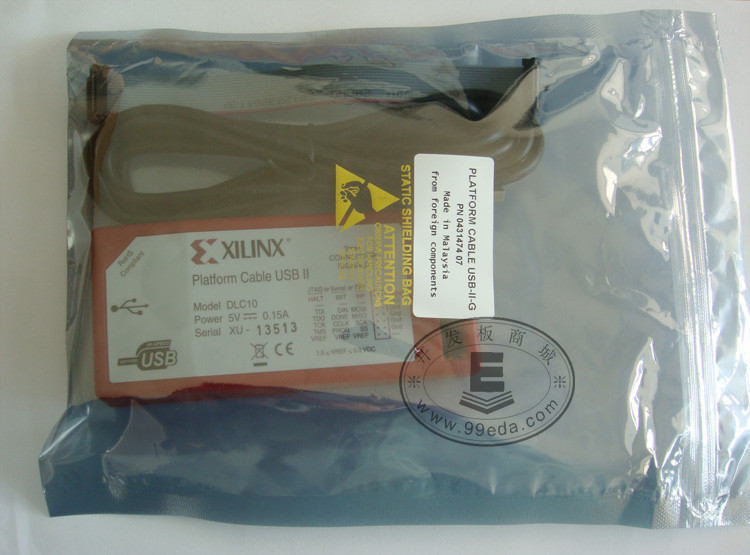

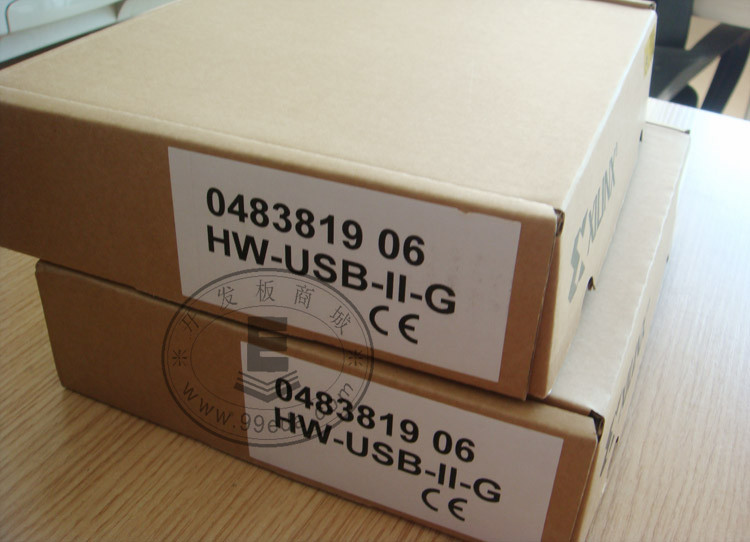

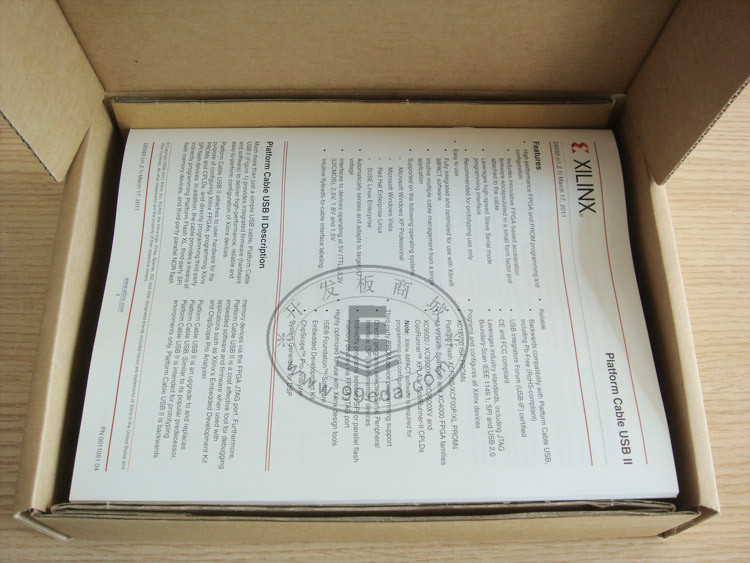

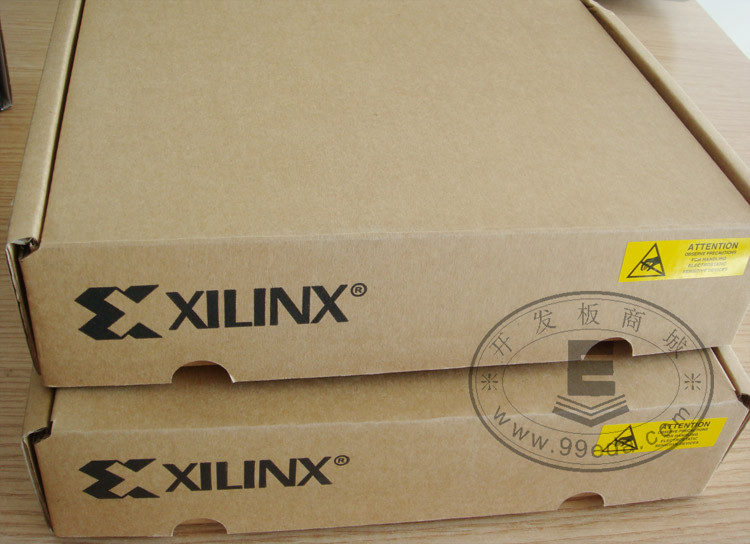

全部图片是实物拍照

产品图片

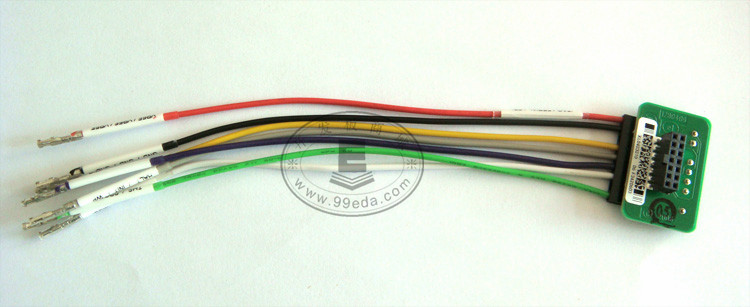

杜邦线

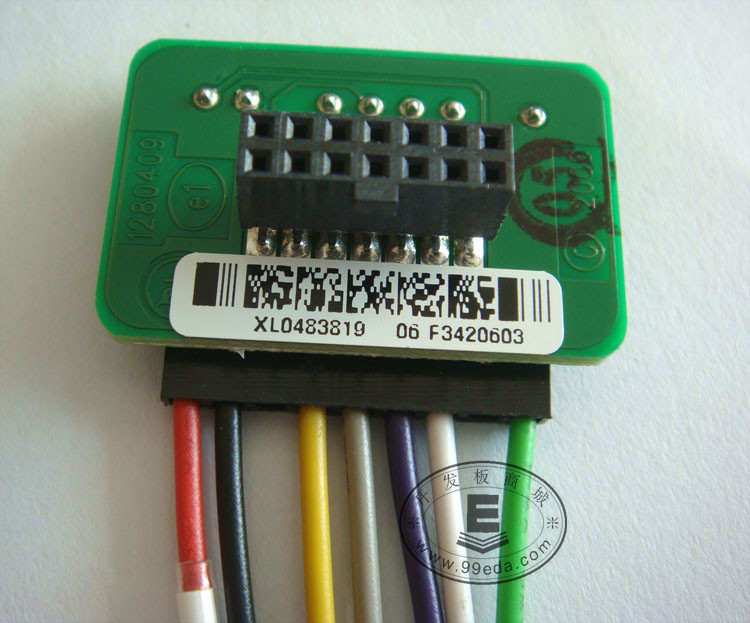

杜邦头接口









Xilinx is now offering its second generation Pb-Free (RoHS compliant) USB compatible cable for in-circuit configuration and programming of all Xilinx devices.

The Platform Cable USB II provides integrated firmware to deliver high-performance, reliable and user-friendly configuration of Xilinx FPGAs and programming of Xilinx PROM and CPLD devices. The Platform Cable USB II cable optimizes direct programming of third-party SPI flash memory devices and indirect programming of SPI or parallel NOR flash memory devices via the FPGA JTAG port. In addition, Platform Cable USB II is a cost effective tool for debugging embedded software and firmware when used with Xilinx applications such as the Embedded Development Kit and ChipScope™ Pro Analyzer.

Platform Cable USB II is an upgrade to and backwards compatible with Platform Cable USB. It has industry-leading performance and is compatible with Full Speed (USB 1.1) and Hi-Speed (USB 2.0) ports.

Key Features

  • High-performance FPGA configuration and PROM/CPLD programming
    • Includes innovative FPGA-based acceleration firmware encapsulated in a small form factor pod attached to the cable
    • Supports JTAG and Slave-Serial programming topologies
    • Firmware downloadable over cable
  • Easy to use
    • Fully integrated and optimized for use with Xilinx iMPACT software
    • Intuitive multiple cable management from a single application
    • Compatible with Windows and Linux operating systems
    • Automatically senses and adapts to target I/O voltage
    • Interfaces to devices operating at 5V (TTL), 3.3V (LVCMOS), 2.5V, 1.8V and 1.5V
    • Bus-powered USB device (no power supply required)
    • Flyleads compatible
    • Target power status LED
    • Firmware updates are transparent to the user
  • Reliable
    • Backwards compatibility with Platform Cable USB, including Pb-Free (RoHS-compliant)
    • USB Integrators Forum (USB-IF) certified
    • CE and FCC compliant
    • Leverages industry standards, including JTAG Boundary-Scan IEEE 1149.1, SPI and USB 2.0
    • Compatible with Full-Speed and Hi-Speed USB ports
    • Programs and configures all Xilinx devices**
  • Third-party PROM device programming support
    • Directly programs selected Serial Peripheral Interface (SPI) flash memory devices
    • Indirectly programs selected SPI or parallel flash memory devices via FPGA JTAG port
    • Highly optimized for use with Xilinx design tools - ISE® Foundation™ Software, Embedded Development Kit, ChipScope Pro Analyzer and System Generator for DSP.
  • Pb-Free (RoHS-compliant)
  • Recommended for prototyping use only

Xilinx platform cable usb(Xilinx 下载线)

1.目标器件VCC兼容 1.5V--5V

2.可配置所有Xilinx器件

3.支持iMPACT ChipScope

4.支持JTAGSlave Serial配置模式

5.目标器件下载时钟可选,最高可达24 MHz

6LED状态指示灯指示目标器件电源状态

7.使用方便,只有要USB 口的计算机都可以,无需并口



高性能FPGAPROM设计和配置
·
创新的FPGA最新产品及相关固件下载
·
高速Slave Serial下载模式的设计
·
原型开发使用时推荐
使用简单

·
即插即用设备
· USB
总线供电(无需外接电源)
·
目标下载时钟频率可选,最高可达24MHz
·
与全速(Full-Speed)和(Hi-SpeedUSB端口兼容

· LED
电源状态显示
·
固件软件ISE v6.3.03i支持iMPACT ChipScope(仅供Windows系统)
·
固件软件ISE software v7.1i支持
Linux
·
支持边界扫描和Slave Serial配置模式

·
完整和优化的Xilinx iMPACT 软件应用
·
可视的、多级下载管理应用
·
支持下列操作系统:
——Microsoft Windows XP Professional
——Microsoft Windows Vista
——Windows 2000
——Red Hat Enterprise Linux
——SUSE Linux Enterprise
·
自动判别和适应目标I/O电压
·
兼容目示器件电压范围:5V (TTL), 3.3V(LVCMOS), 2.5V, 1.8V and 1.5V
可靠性

·
向后兼容Cable USB平台包括Pb-Free (RoHS-compliant)
· USB
综合Forum (USB-IF)认证

·
符合CE FCC标准
·
行业标准:包括JTAG 边界扫描IEEE 1149.1SPI USB 2.0

器件支持列表:
- All Virtex FPGA families
- All Spartan FPGA families
- XC9500 / XC9500XL / XC9500XV CPLDs
- CoolRunner XPLA3 / CoolRunner-II CPLDs
- XC18V00 ISP PROMs
- XCF00S / XCF00P Platform Flash PROMs
- XC4000 series FPGAs Programs serial peripheral interface (SPI) flash PROMs
