CY8CKIT-002 PSoC MiniProg3

PSoC®是一款真正的可编程嵌入式系统级芯片，在单个芯片上集成了可配置的模拟和数字外设功能、存储器和微控制器。通过极其灵活的可视化嵌入式设计方法，包括经过预配置的用户定义外设和分层原理图输入，您可以随时改变主意并按期开展工作，而不需要从头开始重新启动项目，没有更多的目录，也没有其他限制。

PSoC®架构由可配置的模拟和数字模块、CPU子系统和可编程的布线和互连单元组成。PSoC使您可以接入来自PSoC功能库的经过预定义和测试的IP，或自行编写代码。无论采用哪种方式，您都可以灵活地构建具有创新特性和竞争优势的产品。

PSoC® MiniProg3编程和调试工具包集所有功能于一身，可作为PSoC 1、PSoC 3和PSoC 5架构的编程器，以及PSoC 3和PSoC 5架构的调试工具。该工具包包括一条10引脚的带状电缆，用于连接至针对PSoC 3和PSoC 5架构的标准10引脚JTAG插头接口，同时，器件本身则支持针对PSoC 1架构的5引脚ISSP编程插头。请注意，此工具包仅包含MiniProg3及配套电缆，其目的是为您提供额外的编程/调试能力，以满足您的需求。

The PSoC® MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures, debug tool for PSoC 3 and PSoC 5 architectures, and a USB-I2C Bridge for debugging I2C serial connections and communicating to PSoC devices.

The Miniprog3 supports the following protocols:

•  SWD

•  JTAG

•  ISSP

•  USB-I2C

Included with the kit is a 10-pin ribbon cable for connecting to standard 10-pin JTAG header interfaces utilized for our PSoC 3 and PSoC 5 architectures while the device itself supports the 5-pin ISSP programming header for PSoC 1 architectures. The 5-pin connector also supports the USB-I2C Bridging capabilities and is a superset of the CY3240 capabilities. Please note, the CY8Ckit-002 only contains the Miniprog3 and supporting cables

Important Usage Note:

There is an electrical risk may be seen when customers reverse the 5 or 10 pin connector when trying to program or debug a system. By doing this power and ground connections will be connected to an electrically vulnerable configuration. This configuration may cause damage to the Miniprog3 resulting in failures. This often occurs when customers have a non keyed connectors or header for their system. The user must be aware of the polarity settings on the target board and/or use keyed connectors when trying to program using the Miniprog3. An update to the Miniprog3 will be available in late 2011 that will add ESD protections to the programmer.

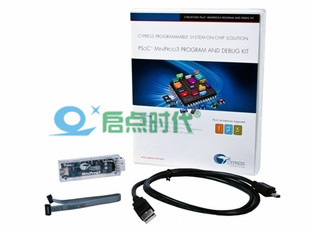

Kit Contents:

• MiniProg3
• Program/Debug Ribbon Cable
• USB Cable
