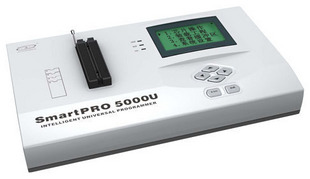

SmartPRO 5000U was designed to be the ultra-fastest, reliable, and versatile programmer in supporting today’s and tomorrow’s device programming challenges.
SmartPRO 5000U incorporates a high speed CPU, Hi-Speed USB 2.0, and powerful FPGA structure to meet programming challenges today and into the future. With a 32Mbit memory buffer which is expandable to up to a compact flash card, MagicPRO series is always here making the best even better.
SmartPRO 5000U combines a stand-alone system, ICP downloading with stand PC hosted operation for high speed, flexible programming of devices in design engineering and production applications.
SmartPRO 5000U present high-performance on NAND flash and CPLD/FPGA programming.
SmartPRO 5000U ergonomic design and software interface maximizes operator efficiency by combining speed and scalability in one system.
High Performance
SmartPRO 5000U exclusive feature saves you time, frustration, and money.
Design for versatile multi-applications: You have freedom to choose the optimum mode for your programming demands.
- Stand-alone Mode for manufacturing needs: Can operate independent of a PC.
- Stand PC hosted operation for R&D and engineering.
- ICP download mode: Smart5000U directly supports in-circuit programming using a dedicated ICP connector and an included cable. ICP mode is ideal for design engineering and low-volume production.
Flexible, Reliable Support for the Latest Devices and Packages Support over 10000 devices with low voltage devices down to 1.8V(Vdd). Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a default DIP48 socket or through an appropriate ADAPTER/CONVERTER.
Advanced hardware features
- Includes high speed CPU and 4Mbit memory buffer as standard.
- High-speed FPGA driven hardware for ultra-fast programming.
- Use the USB2.0 port to connect to PC: A faster, more reliable communications interface between the programmer and the host PC.
- A CF memory card slot can be used to expand the unit’s memory to a maximum of 4Gbytes. (Memory cards are only required for stand-alone jobs lager than 4Mbits.)
- LCD displays programming status on a 16x4 character display
- Built-in keyboard for local operation.
 Wide IC Coverage: Low-voltage programming supports voltages down to 1.8V allowing you to program the newest devices on the market.
High Reliability: Self-Test system check hardware status any time.
Continuity Test: Pin continuity and wrong chip insertion check prevent chips from accident damage.
Software designed with you in mind - Get to work immediately
The programming software's easy-to-use graphical interface eliminates your learning curve—you don't need the manual! Friendly operation interface combines many powerful functions with ease to use.
Project manager save option: project minimizes the whole process of device selection, file loading, device configuration setting, operation option etc. to a single step.
Auto mass-program: The unique "Auto-Sense" function will sense the inserted device and program the device properly without touching any key. Once the chips are in place, programming begins. Only the steps you need and nothing extra to get in the way. This function is very usable in mass-program.
Device Check: Give a warning automatically according to the actual ID read when a mistake type is selected.
CRC Verify: File CRC check and detect large file offset automatically.
Serial number generator: Serial number can be generated and programmed into Code or Data locations automatically in anyway customer specified.
Algorithm Updates: SmartPRO 5000U provides universal, highly flexible device programming support for today’s memory, microcontroller and logic devices from all the major manufacture. We release new device support software from our web site weekly.
A powerful multiprogrmming
Attaching of more SmartPRO 5000U programmers to the same PC (through USB2.0 port) is achieved a powerful multiprogramming system with as much chips supported as SmartPRO 5000U can and without obvious decreasing of programming speed. It is important to know, there is a concurrent multiprogramming - each programmer works independently and each programmer can program different chip, if necessary.
Ideal for Engineering as well as Production Environment
Wide device covering range, flexible future expansion capability help users to achieve challenging time-to-market goal.
High Performance
SmartPRO 5000U exclusive feature saves you time, frustration, and money.
Design for versatile multi-applications: You have freedom to choose the optimum mode for your programming demands.
- Stand-alone Mode for manufacturing needs: Can operate independent of a PC.
- Stand PC hosted operation for R&D and engineering.
- ICP download mode: Smart5000U directly supports in-circuit programming using a dedicated ICP connector and an included cable. ICP mode is ideal for design engineering and low-volume production.
Flexible, Reliable Support for the Latest Devices and Packages Support over 10000 devices with low voltage devices down to 1.8V(Vdd). Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a default DIP48 socket or through an appropriate ADAPTER/CONVERTER.
Advanced hardware features
- Includes high speed CPU and 4Mbit memory buffer as standard.
- High-speed FPGA driven hardware for ultra-fast programming.
- Use the USB2.0 port to connect to PC: A faster, more reliable communications interface between the programmer and the host PC.
- A CF memory card slot can be used to expand the unit’s memory to a maximum of 4Gbytes. (Memory cards are only required for stand-alone jobs lager than 4Mbits.)
- LCD displays programming status on a 16x4 character display
- Built-in keyboard for local operation.
Wide IC Coverage: Low-voltage programming supports voltages down to 1.8V allowing you to program the newest devices on the market.
High Reliability: Self-Test system check hardware status any time.
Continuity Test: Pin continuity and wrong chip insertion check prevent chips from accident damage.
Software designed with you in mind - Get to work immediately
The programming software's easy-to-use graphical interface eliminates your learning curve—you don't need the manual! Friendly operation interface combines many powerful functions with ease to use.
Project manager save option: project minimizes the whole process of device selection, file loading, device configuration setting, operation option etc. to a single step.
Auto mass-program: The unique "Auto-Sense" function will sense the inserted device and program the device properly without touching any key. Once the chips are in place, programming begins. Only the steps you need and nothing extra to get in the way. This function is very usable in mass-program.
Device Check: Give a warning automatically according to the actual ID read when a mistake type is selected.
CRC Verify: File CRC check and detect large file offset automatically.
Serial number generator: Serial number can be generated and programmed into Code or Data locations automatically in anyway customer specified.
Algorithm Updates: SmartPRO 5000U provides universal, highly flexible device programming support for today’s memory, microcontroller and logic devices from all the major manufacture. We release new device support software from our web site weekly.
A powerful multiprogrmming
Attaching of more SmartPRO 5000U programmers to the same PC (through USB2.0 port) is achieved a powerful multiprogramming system with as much chips supported as SmartPRO 5000U can and without obvious decreasing of programming speed. It is important to know, there is a concurrent multiprogramming - each programmer works independently and each programmer can program different chip, if necessary.
Ideal for Engineering as well as Production Environment
Wide device covering range, flexible future expansion capability help users to achieve challenging time-to-market goal.
| General |
|
By external power supply
AC input voltage: 100-240V/47-63Hz
DC output voltage: 12V/2A |
- Dimensions: 280mm×170mm×57mm (L×W×H)
|
- Mass: 0.9 kg (1.98 Pounds)
|
| Hardware |
- Interface Port: USB2.0 port
- Includes high speed CPU and 4Mbit memory buffer as standard.High-speed FPGA driven hardware for ultra-fast programming.
- A CF memory card slot can be used to expand the unit’s memory to a maximum of 4Gbytes. (Memory cards are only required for stand-alone jobs lager than 4Mbits.)
- LCD displays programming status on a 16x4 character display
- Built-in keyboard for local operation.
- Calibration: automatic self-calibration
- Diagnostics: pin continuity test, RAM, ROM, CPU, pin drivers, power supply, communications, cable, calibration verification timing
|
| PC System |
- Requirements: Windows NT/2000/XP
|
| PIN Drivers: |
- Quantity: 48-pins standard
- Rise Time: 6ns
- VCC Range: 1.8~10V
- Icc Range: 0~800mA continuously programmable
- VPP Range: 2.5~25V
- Ipp Range: 0~400mA continuously programmable
- Clocks: continuously variable 1Hz~48MHz
- Protection: overcurrent shutdown, power failure shutdown
- Independence: pin drivers and waveform generators are fully independent and concurrent
|
| Software |
- Algorithms : Uses manufacturer approved algorithms
- File Type: It can handle file in binary/machine code , Intel Hex, Techtronics, Signetics, Motorola, ASCII,MS-DOS fn. COM & EXE , DRAFT etc.
- Device Supported: including, but not limited to low voltage, PROM, EPROM, EEPROM, Flash EEPROM, Microcontrollers, GAL. SRAM, TTL/CMOS device test.
- S/W update: Virtually supports you, and free life-time software updates are available!
Main screen
|
Programing a Device |
 |
 |
|
Project basic screen
|
Device Serial Number screen |
 |
 |
|
Mass Production screen
|
One Touch Opreation screen |
|
 | |
|
